What is an ISTP?

An Independent Sewage Treatment Plant (ISTP) is a municipal wastewater facility that receives raw sewage from a city's collection network and converts it, in a continuous flow process, into treated sewage effluent (TSE) clean enough to reuse for irrigation, landscaping, district cooling make-up water and industrial processes. A large GCC ISTP processes 100,000 to 600,000 cubic metres per day - the daily wastewater output of a city of roughly half a million to three million people.

How an ISTP fits in the city water cycle

A high-level view of how municipal wastewater moves through an ISTP and back into the city as treated effluent.

How is the sewage treated?

From raw influent to reusable effluent in five steps.

Click any step in the flow above

Each step opens a short description here. The same five-step backbone runs in every ISTP - what changes between deals is the technology chosen at the secondary and tertiary stages.

What different technologies are used for this?

Technology	What it is	How often it is used
Conventional Activated Sludge CAS	The old, reliable workhorse. Big open tanks where natural bacteria eat the dirt in the water, then settle to the bottom and clean water flows on. Easy to build, cheapest to run, but takes a lot of land.	Most used
Membrane Bioreactor MBR	A modern, compact version. Same bacteria as CAS, but the clean water is squeezed out through very fine sieves (membranes) instead of letting it settle. The plant fits on a much smaller site and the water comes out cleaner, but the membranes wear out over time and cost more to run.	Often used
Biological Nutrient Removal BNR / EBPR	A version of CAS that also strips out nitrogen and phosphorus - the chemicals from fertilisers and detergents that cause algae blooms in rivers and seas.	Sometimes used
Sequencing Batch Reactor SBR	One tank that does everything in turns - fills up, treats, lets the dirt settle, then empties. Like a washing-machine cycle. Good for smaller plants but doesn't scale up to city size.	Rarely used
Moving Bed Biofilm Reactor MBBR / IFAS	Small plastic chips floating in the tank that bacteria stick to and grow on. Lets you cram more cleaning into less space - often used to upgrade an old plant without building new tanks.	Sometimes used

Real-world examples

Operational ISTPs from the research dataset. The schematic above is a generic layout; in reality each plant arranges the same components differently. Scroll through or use the arrows to browse.

Current research on independent ISTP tariffs based on the selected projects.

What is an IPP?

An Independent Power Project (IPP) is a privately owned and financed thermal power station that sells its electricity output to the national grid under a long-term power purchase agreement. Modern GCC IPPs are built around large gas-fired combined-cycle units (CCGT) fed by the national gas grid; a typical site produces 1.5-2.4 GW - enough for roughly 1.5 million homes. It is the power-only sibling of the IWPP: the same heat cycle, but without the bolt-on desalination block.

How an IPP fits the national power grid

The plant sits between the gas grid (fuel in) and the high-voltage transmission grid (electricity out). The downloadable schematic shows the five stations of that flow.

How a CCGT works

Six steps, gas in at the left, useful electricity out at the bottom. Click a step to see what happens there.

Click any step in the flow above

Each step opens a short description here. The same six-step backbone runs in every CCGT - what differs between deals is the turbine class (F vs H) and how the bottoming cycle is integrated.

Power-island technologies

Technology	What it is	How often it is used
F-class gas turbines Mitsubishi M501F · Siemens SGT5-4000F · GE 9FA	The workhorse for 2000-2015. 200-280 MW per unit, ~58% combined-cycle efficiency. Used at Taweelah A2/B, Shuweihat, Fujairah F1/F2, Rabigh 1.	Often used
H-class gas turbines Mitsubishi M701JAC · Siemens SGT5-8000H · GE 9HA	The current standard since 2018. 350-600 MW per unit, ~62% combined-cycle efficiency. Higher firing temperature (~1,600 °C) using single-crystal blades + thermal-barrier coatings. Used at Hassyan IPP, Fujairah F3, Mirfa, Mesaieed.	Most used
OCGT peakers Open-cycle, no bottoming cycle	Single gas-turbine units that run only at peak demand. Lower efficiency (~38%) but cheap to start and stop. Sit on the same gas grid as the CCGT base-load fleet.	Sometimes used
Black-start & grid services	Some IPPs include dedicated black-start aux generators for grid restart after blackout. CCGTs can also ramp ~30 MW/min for frequency support.	Sometimes used
CCUS-ready design Carbon capture optionality	Newest plants (Misfah CCGT, Duqm CCGT - awarded Jan 2026) include flue-gas-treatment plot space and tie-in points for future post-combustion capture.	Rarely used

Real-world examples

Operational and awarded IPPs from the dataset. Where the specific plant photo is not yet on file, we show the sister plant or complex it sits in - flagged in the caption.

What is a desalination (SWRO) plant?

A Seawater Reverse Osmosis (SWRO) plant turns seawater into drinking water by pushing it through plastic membranes whose pores are small enough to let water molecules through but block salt ions. To force water through against the natural osmotic pressure (~28 bar for Gulf seawater) you apply >60 bar with industrial pumps. Output: pure water from one side, twice-concentrated brine from the other. Modern GCC SWRO plants produce 300,000-900,000 m³/day - enough drinking water for a major city.

"Independent" means the plant is owned by a private project company and sells output to the national water utility under a long-term water purchase agreement. This tab absorbs what used to be the standalone SWRO page.

How desalinated water fits the city water cycle

Sea in at the left, drinking water out to the city on the right. The schematic shows the four stations.

How a SWRO plant works

Five steps from raw seawater to drinking water. Click a step to see what happens there.

Click any step in the flow above

Five-step backbone of every modern SWRO plant. The energy-recovery device at the end is what got the SWRO tariff down to USD 0.30-0.40/m³.

Desalination technologies

Process	How it works	How often it is used
SWRO Reverse osmosis	Seawater pushed through semi-permeable polyamide membranes at 60-80 bar. Pressure-exchanger ERD recycles ~96% of brine pressure back to feed. 2.5-3.5 kWh-elec/m³, no heat. Used at Hassyan, Taweelah RO, Rabigh-3, all new GCC desal.	Most used
MED Multi-Effect Distillation	Horizontal-tube falling-film evaporators at ~70 °C. Each effect reuses condensation heat from the next. 6-9 kWh-thermal/m³ + 1.5 kWh-elec/m³. Transition-era IWPPs: Sohar, Salalah.	Rarely used (new builds)
MSF Multi-Stage Flash	Seawater heated to 90-110 °C with steam bled from the steam turbine, then flashed through 18-24 successive chambers at decreasing pressure. 10-15 kWh-thermal/m³ + 3.5 kWh-elec/m³. Used at older IWPPs (Taweelah A2, Shuweihat S1, Fujairah F1, 1999-2007).	Phased out

Core SWRO component shelf

Component	Function	Typical suppliers
RO membranes	Spiral-wound polyamide thin-film composite. 8" x 40" elements, 6-element pressure vessels, 8 vessels per train. ≥99.7% salt rejection.	DuPont (Filmtec), Hydranautics (Nitto), Toray, LG Chem
Energy recovery devices	Capture pressure energy from concentrate stream and transfer to feed stream. PX devices use rotary ceramic rotors; up to 96% transfer efficiency.	Energy Recovery Inc (ERI PX Q400), Flowserve (DWEER)
High-pressure pumps	Multi-stage centrifugal, 70-80 bar discharge. Variable-speed for partial-load operation.	Sulzer, KSB, Flowserve, Andritz
Ultrafiltration	Hollow-fibre membranes (0.02 μm). Pretreatment to deliver Silt Density Index ≤3 to RO.	Pentair (X-Flow), Suez (ZeeWeed), Toyobo
Intake structures	Surface intake (deep open-water, low velocity to limit marine impingement) vs beachwell (drilled into beach aquifer, natural sand filtration).	Custom civil; SUEZ Pall (intake screens)

Captive solar integration

Newer Saudi/UAE SWRO plants integrate dedicated solar PV to cut grid energy import:

• Jubail-3B - 61 MW captive solar PV (largest captive solar for a desal plant at announcement)
• Shuaibah-3 - 65 MWp captive PV
• Sharqiyah / Sur (Oman) - 17 MWp PV added April 2023 by Veolia + TotalEnergies; ~32,000 MWh/yr renewable input

Real-world examples

Operational SWRO plants from the dataset.

What is an IWPP?

An Independent Water & Power Project (IWPP) is the cogeneration bundle: a single plant that produces electricity AND fresh water from the same fuel and the same physical heat cycle. Two technologies in one - the gas-fired power island generates electricity, and the waste or bleed heat from the steam turbine drives a thermal desalination block (MSF or MED) bolted onto the same site. A typical GCC IWPP produces ~2 GW of power and ~500,000 m³/day of fresh water from the same plot.

The "IW" half exists because the GCC has no rivers, almost no rainfall and no large freshwater aquifers. Every drop of municipal water has historically come from the sea via desalination - and the cheapest way to desalinate was to ride the waste heat off a gas-turbine power plant. That's why power and water got bundled into one plant for ~25 years. The current shift is toward decoupling: pure-power IPPs (Tab 1) feed pure-water SWRO (Tab 2) on the same grid, and the new-build IWPP pipeline is thinning out.

How an IWPP feeds both cycles

One fuel input on the left; two product outputs - electricity to the grid AND fresh water to the city. The schematic below shows the dual feed.

How cogeneration couples the two

The story unique to this tab: one fuel input drives a CCGT, and the waste or bleed heat off the steam turbine is what powers the desalination block. Click a step.

Click any step in the flow above

The cogeneration trick is the steam bleed: instead of dumping all the bottoming-cycle heat to the condenser, the IWPP diverts a fraction at the right pressure to drive thermal desalination. That single step is what defines an IWPP versus a power-only IPP.

Technology combinations by era

Era	Power-island class	Desal block	Representative deals
1999-2007 Founding generation	F-class CCGT	MSF (multi-stage flash)	Taweelah A2, Shuweihat S1, Fujairah F1
2007-2015 F-class peak	F-class CCGT	MED + some bundled RO	Taweelah B, Shuweihat S2, Sohar IWPP, Salalah
2015-2020 H-class transition	F/H-class CCGT	MED + RO bundled	Az-Zour North, Umm Al Houl, Mirfa 1, Fadhili
2020+ Decoupling era	H-class CCGT (pure power)	Desal moves off-site to standalone SWRO	Hassyan IPP + Hassyan SWRO · Fujairah F3 IPP + Taweelah RO

Real-world examples

Cogeneration IWPPs from the dataset - dual-product plants.

Database

GCC IPP procurements. Tariffs in USD/kWh only - power tariffs and water tariffs are not comparable, so this view never mixes the two.

Database

GCC SWRO IWP procurements. Tariffs in USD/m³ only - never on the same axis as power tariffs.

Database

GCC cogeneration IWPP procurements. Most IWPP tariffs are commercially confidential due to the dual-product structure; the tariff scatter shows only Dhuruma/PP11 and Al Dur-2 where the dual split is publicly disclosed. Bubble size = power capacity (MW).

What is a Solar IPP?

A solar power plant is a field of photovoltaic (PV) modules that converts sunlight directly into electricity. Modern utility-scale GCC plants cover 10-40 km² of desert, with millions of glass-and-silicon panels mounted on motorised steel racks that pivot east-to-west through the day to track the sun. There are no moving fluids or thermal cycles - sunlight in, electrons out - which makes PV the simplest and fastest-to-build large power asset on the grid.

The GCC has the world's best solar resource: 2,200+ peak sun hours per year, low cloud cover, high direct irradiance. The cost penalty is heat (silicon cells lose ~0.4% efficiency per °C above 25 °C) and dust (sand accumulation requires robotic dry-cleaning every 1-2 weeks). These are engineering problems already solved.

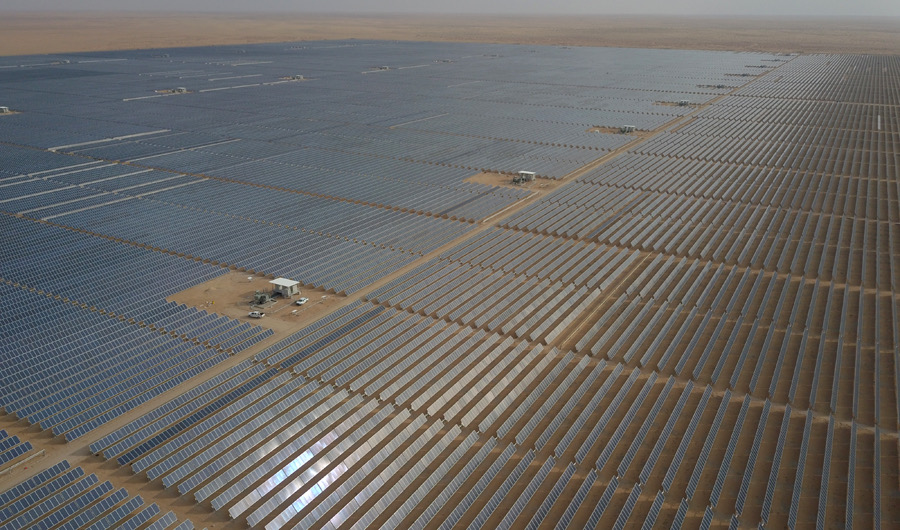

What a solar IPP looks like

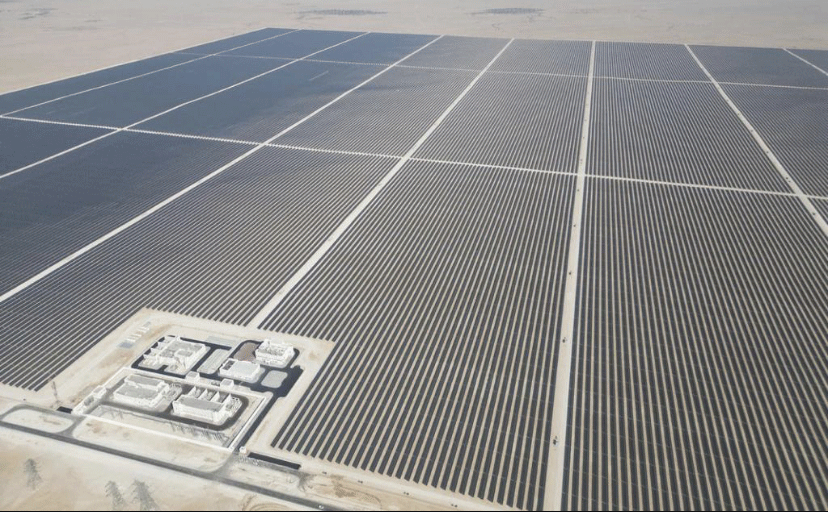

A typical GCC utility-scale solar plant is a long rectangle of PV "tables" - rows of tilted panels on single-axis trackers - interrupted every few hundred metres by inverter skids, with a high-voltage substation at the grid-connection edge. Plant area scales roughly linearly with capacity: ~1.5-2 hectares per MW.

How a PV plant generates electricity

1. Photon absorption - sunlight hits the front glass of a PV cell. Photons with enough energy excite electrons in the silicon, knocking them loose into a conduction band. Each cell produces ~0.5 V DC.
2. Series & parallel wiring - cells in a module are wired in series to step up voltage; modules in a string are wired similarly. A single PV string delivers ~1,500 V DC at low current.
3. Inverter conversion - string inverters (or central inverters) convert DC to grid-frequency AC. They run an MPPT algorithm that continuously adjusts string voltage to extract maximum power.
4. Transformer step-up - local 800 V → 33 kV pad-mounted transformers feed a collection grid that runs to a central substation, where a main grid transformer steps up to 220-400 kV for export.
5. Single-axis tracking - horizontal-axis trackers rotate the panels east-to-west through the day, adding ~20-25% energy yield over fixed tilt. Tracker controllers use astronomical algorithms plus backtracking to prevent inter-row shading at low sun angles.
6. Cleaning - robotic dry-cleaning crawlers traverse each row weekly, removing dust without water. Soiling losses without cleaning can reach 1% per day in the GCC.

PV technology variants

Mounting & balance-of-system

• Fixed tilt - panels at a fixed angle (typically 25° in the GCC). Simple, cheap, no moving parts. ~15-20% lower yield than tracking.
• Single-axis horizontal tracker - the GCC standard since 2016. Panels rotate ±60° around a horizontal east-west axis. Adds ~25% energy yield. Astronomic-algorithm controllers with backtracking.
• BESS adders - lithium-iron-phosphate (LFP) battery storage co-located with new plants from 2024 onwards. DEWA Phase 7 (1.6 GW PV + 1,000 MW / 6,000 MWh BESS) and Oman Ibri 3 (500 MW PV + 100 MWh BESS) are first-of-kind in the GCC.
• Inverters - central inverters (Sungrow, Huawei) deliver 4-8 MW per skid. String inverters (smaller, more granular) more common on smaller plants. Modern bifacial-ready string inverters have 1,500 V DC input.

Solar IPP process flow - sunlight to grid

Click any step to see how electrons get from desert sand to the national grid. The same six-step backbone runs in every utility-scale PV plant - what differs between deals is cell chemistry (CdTe, mono-PERC, TOPCon/HJT), mounting (fixed-tilt vs single-axis tracker), and whether a co-located BESS shifts production into the evening peak.

Click any step in the flow above

Each step opens a short description here. The Solar IPP backbone is identical across every utility-scale GCC plant - the design choices that move LCOE are cell chemistry, tracker share, and whether a BESS is bolted on for evening dispatch.

Insight charts

Six charts derived from the GCC Solar IPP dataset. Source data and full per-project detail are on the Database tab.

Comprehensive benchmark of disclosed GCC solar IPP tariffs by procurement-stage. Bubble size = nameplate capacity (MW); colour = country. Click a bubble to filter the table; click a row to expand bidder details.

Dataset: 41 Solar IPP procurements across the GCC (2014-2025). Sources: MEED, pv-magazine, sponsor and procurer press releases. Tariffs left blank where not publicly disclosed.

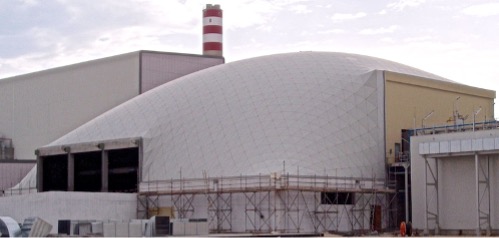

What is a Waste-to-Energy plant?

A Waste-to-Energy (WtE) plant is a factory that burns municipal solid waste - household rubbish - at over 1,000 °C to make electricity. Rubbish replaces coal or natural gas as the fuel. The heat boils water to steam, the steam drives a turbine, the turbine drives a generator. The result: 70-90% of a city's landfill is avoided, and every ~30-40 kg of waste produces 1 kWh of electricity exported to the grid.

WtE is one of the most heavily-regulated industrial processes in the world because uncontrolled waste combustion produces dioxins, furans, NOx, SO₂, HCl, mercury and particulates. Modern plants use 4-5 stages of flue-gas treatment to drive emissions well below European IED 2010/75/EU limits. Done properly, the bottom-ash residue (15-25% of input mass) is inert enough to use as road sub-base aggregate.

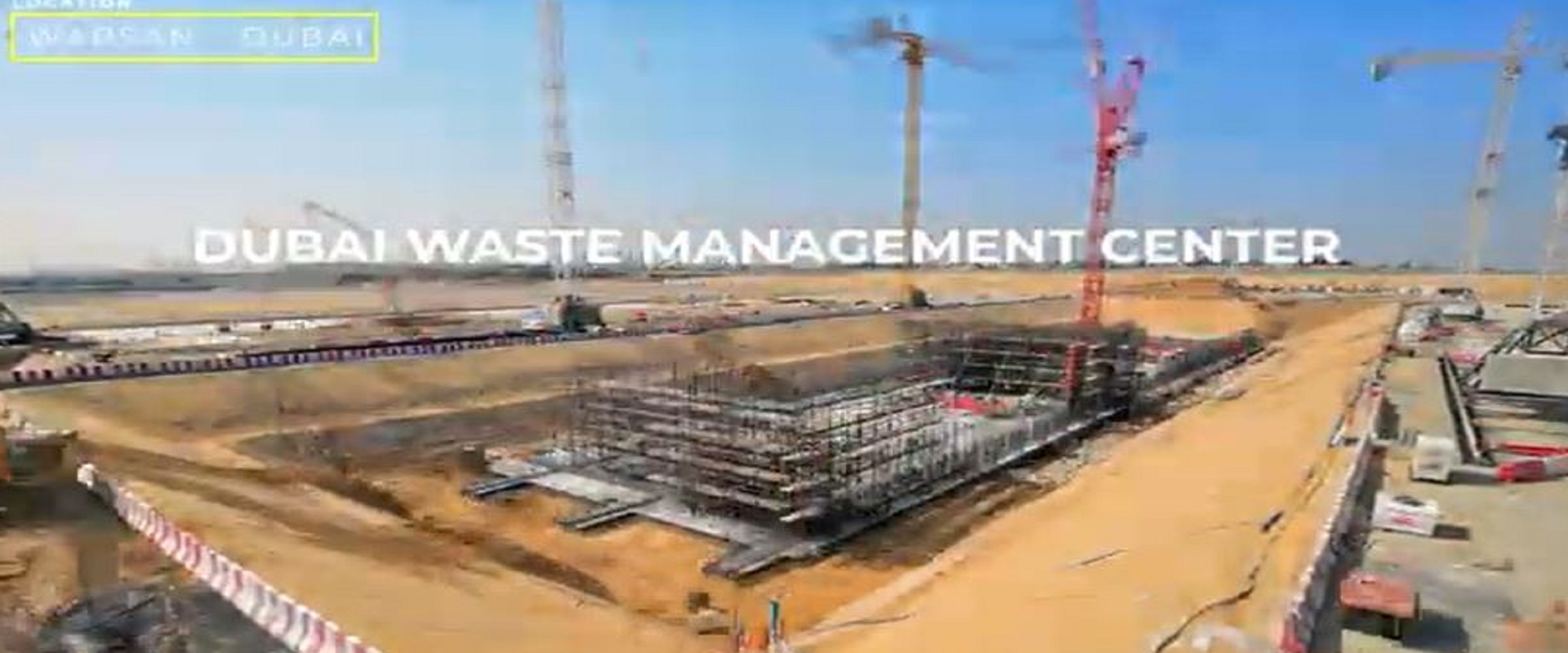

What a WtE plant looks like

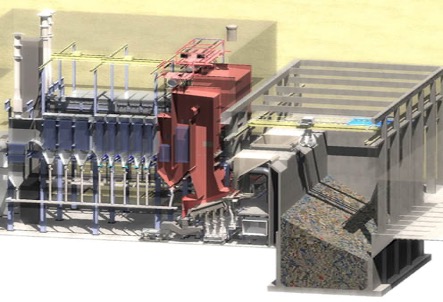

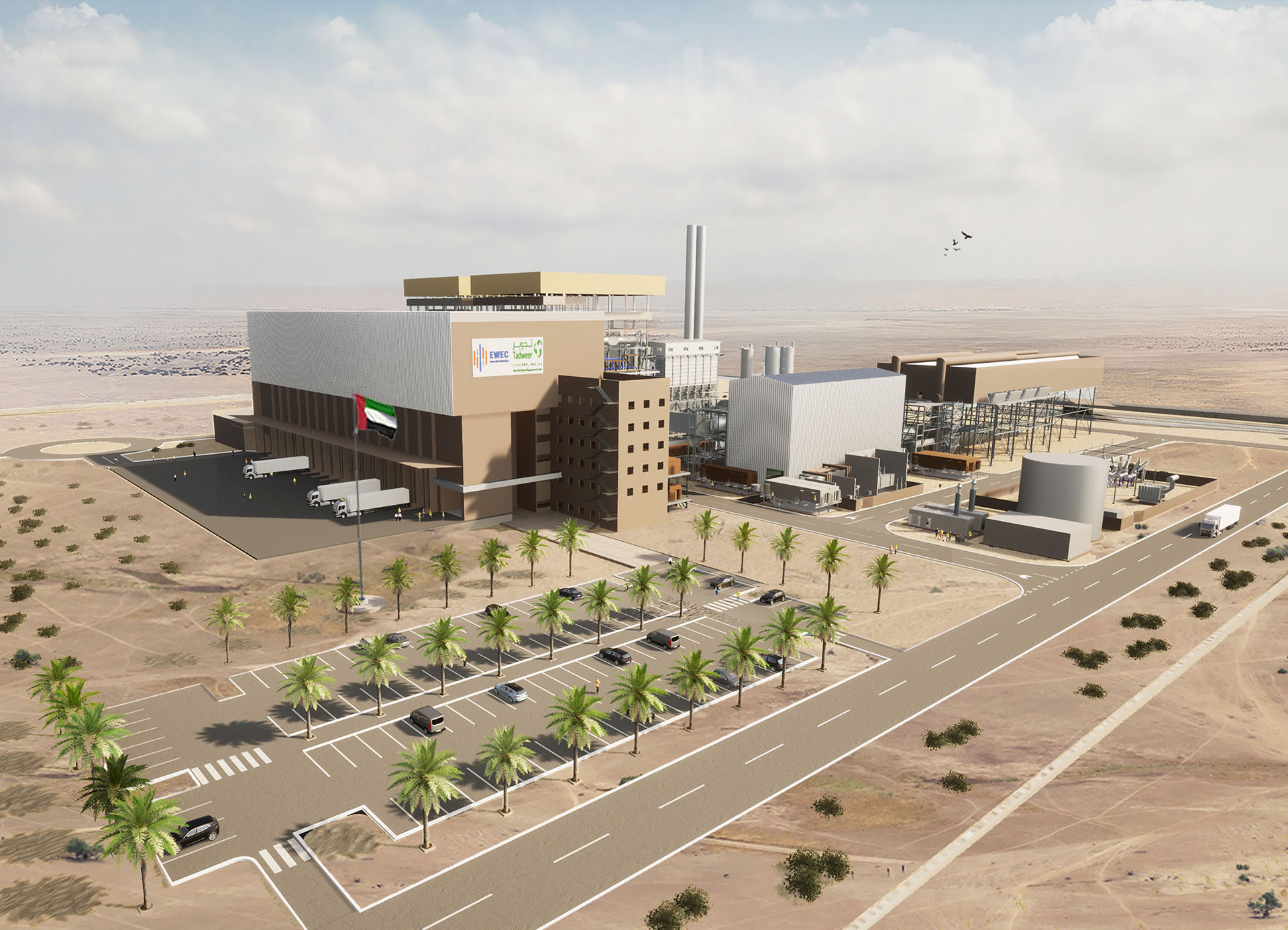

A modern WtE plant is a tall industrial building (typically 50-60 m tall) consisting of: a tipping bay (refuse trucks reverse in and dump), a deep concrete waste pit (3-5 days storage), one or more incineration lines (each a furnace + boiler + flue-gas treatment), a single steam turbine hall, a tall stack (60-100 m), and a fly-ash silo. Plant footprint ~5-15 hectares.

How a WtE plant fits in the city waste cycle

A high-level view of how municipal solid waste (MSW) moves from households into a WtE plant and where the energy + residual streams go.

How a mass-burn WtE plant works

From refuse-truck tipping bay to stack and grid in six steps. Click any step for detail.

Click any step in the flow above

Each step opens a short description here. The same six-step backbone runs in every mass-burn WtE plant - what differs between deals is grate vendor (Martin / CNIM / Kanadevia Inova / Keppel Seghers), flue-gas treatment philosophy, and whether the heat is co-exported as district hot water.

WtE process technologies

Insight charts

Current research on GCC WtE PPP tariffs, sponsor participation, country distribution, technology mix and procurement duration.

GCC WtE PPP benchmark. Bubble size = waste throughput (t/d); chart plots gate fee where disclosed (only Al Bihouth so far). Most other entries shown in the table without chart points.

Dataset: 9 GCC WtE PPPs (commissioned, in procurement, shelved). Sources: MEED, sponsor and procurer press releases, JBIC, BESIX, Kanadevia Inova, BEEAH.

What is an IWTP?

An Independent Water Transmission Pipeline (IWTP) is a buried steel water main, hundreds of kilometres long, that carries desalinated drinking water from a coastal SWRO plant to inland cities. Pump stations every 60-80 km along the route push the water forward and uphill (Saudi inland cities sit 600+ metres above sea level). Strategic storage tanks at the destination cities hold multi-day water reserves.

It exists because desalination is only feasible at the coast (you need a seawater intake), but most GCC water demand is inland. Riyadh has 8 million residents and is 400+ km from the nearest coastline. Qassim is even further. The Saudi Water Partnership Company (SWPC) procures these long-distance transmission lines as separate concessions from the desal plants - letting independent investors build, finance and operate the pipeline as a single asset.

How an IWTP fits in the national water grid

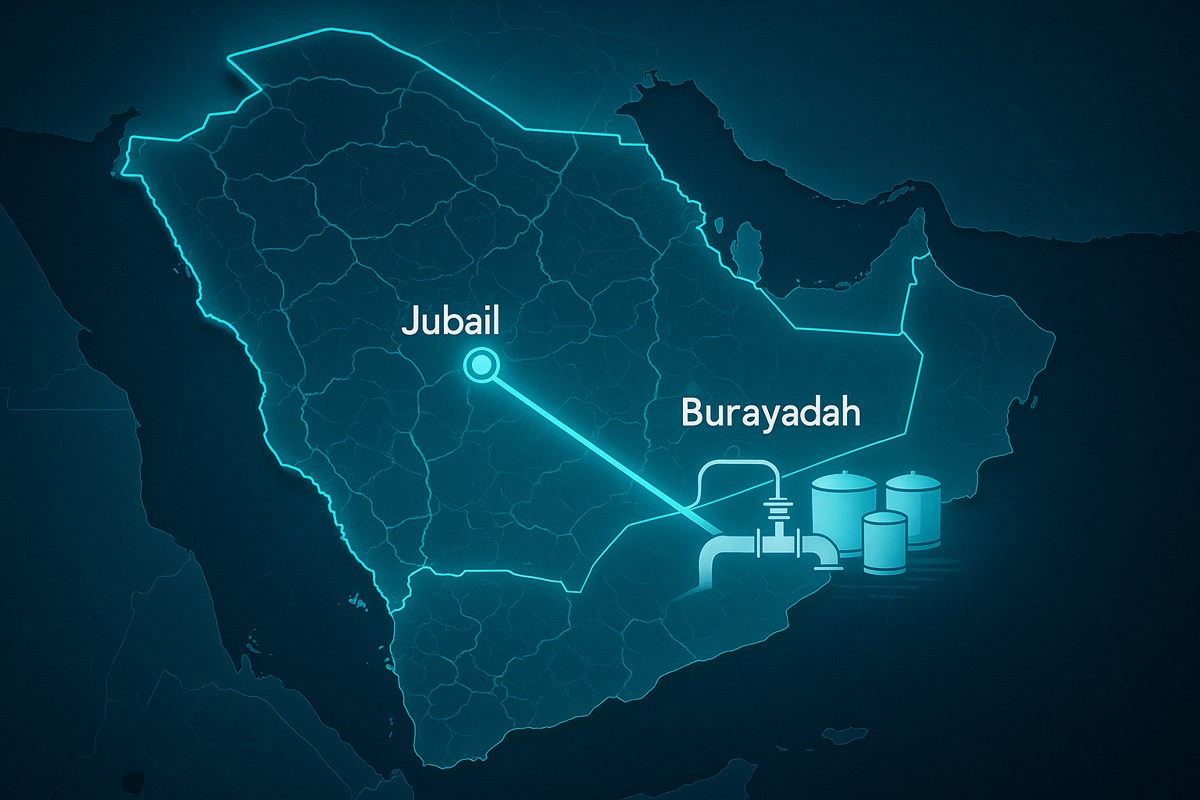

From coast to inland city. The IWTP scope is everything between the SWRO clear well and the strategic storage at the destination city.

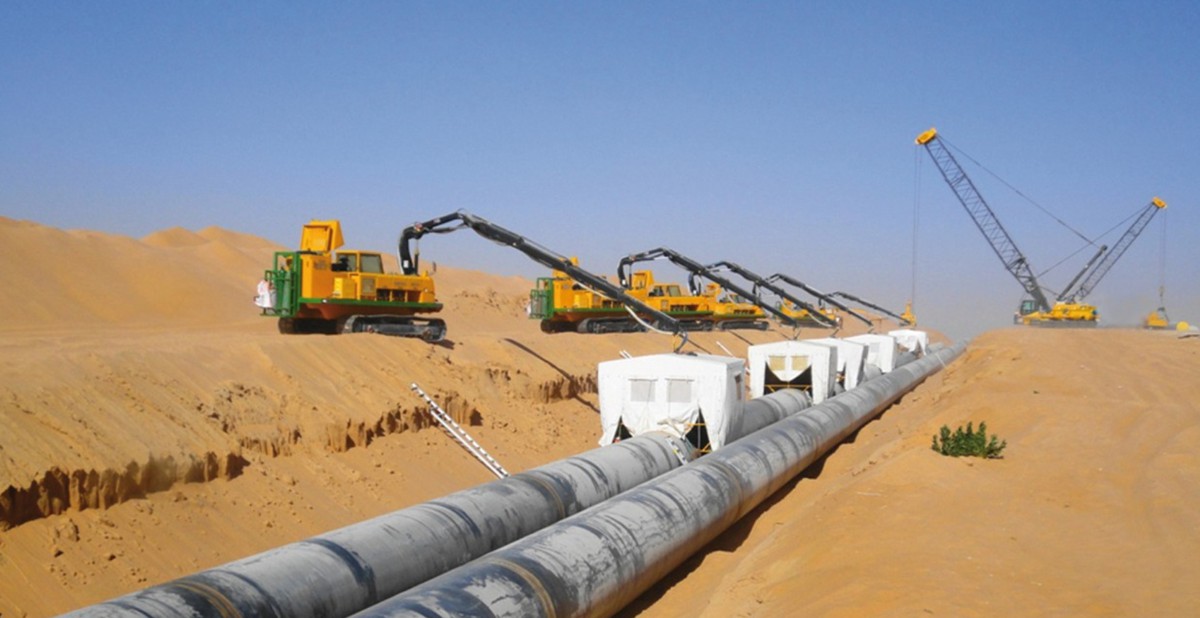

What an IWTP looks like

From the surface you mostly see nothing: 95% of the pipeline is buried 2-3 m underground. The visible elements are pump stations (low-rise industrial buildings with multi-pump halls and electrical switchgear) every 60-80 km, and intermediate or terminal storage tanks (huge prestressed-concrete reservoirs, often 500,000 to 1.5 million m³ capacity). The Riyadh-Qassim pipeline at 859 km is the longest yet, with 1.59 million m³ of total storage across 38 tanks.

How an IWTP works end-to-end

Click any step to see what happens inside it.

Click any step in the flow above

Each numbered block is a discrete unit operation in the pipeline scope. Pumping and storage account for ~75% of capex; the pipeline itself ~25%. Long-haul Saudi corridors hit lower per-km costs because pump stations and tanks scale sub-linearly with route length.

Full process detail

1. Source connection - pipeline starts at the boundary of a coastal desalination plant. SWRO permeate (already remineralised and chlorinated) enters at ~5 bar from the desal plant's clear well.

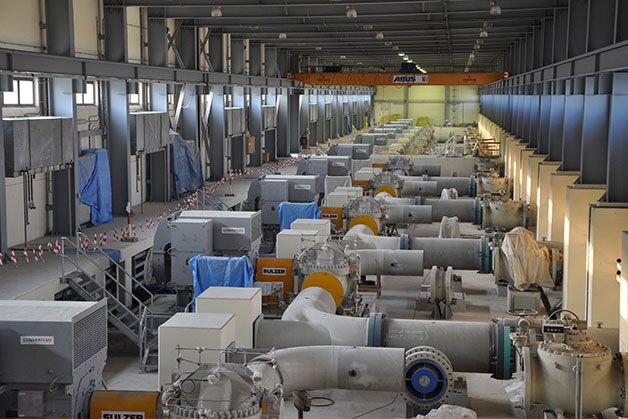

2. Booster pump stations - multi-stage centrifugal pumps re-pressurise the water at every 60-80 km. Stations are spaced based on terrain elevation gain and pipe friction losses. Each station has 3-5 pumps with N+1 redundancy. Variable-speed drives allow partial-flow operation without throttling losses.
3. Pipeline - welded steel main (1,200-1,800 mm internal diameter) buried 2-3 m below ground. Cement-mortar internal lining prevents corrosion from chlorinated water; epoxy or polyurethane external coating + cathodic protection prevents soil-side corrosion. Buried depth protects from temperature extremes and accidental damage. Pipe expansion joints accommodate thermal movement.

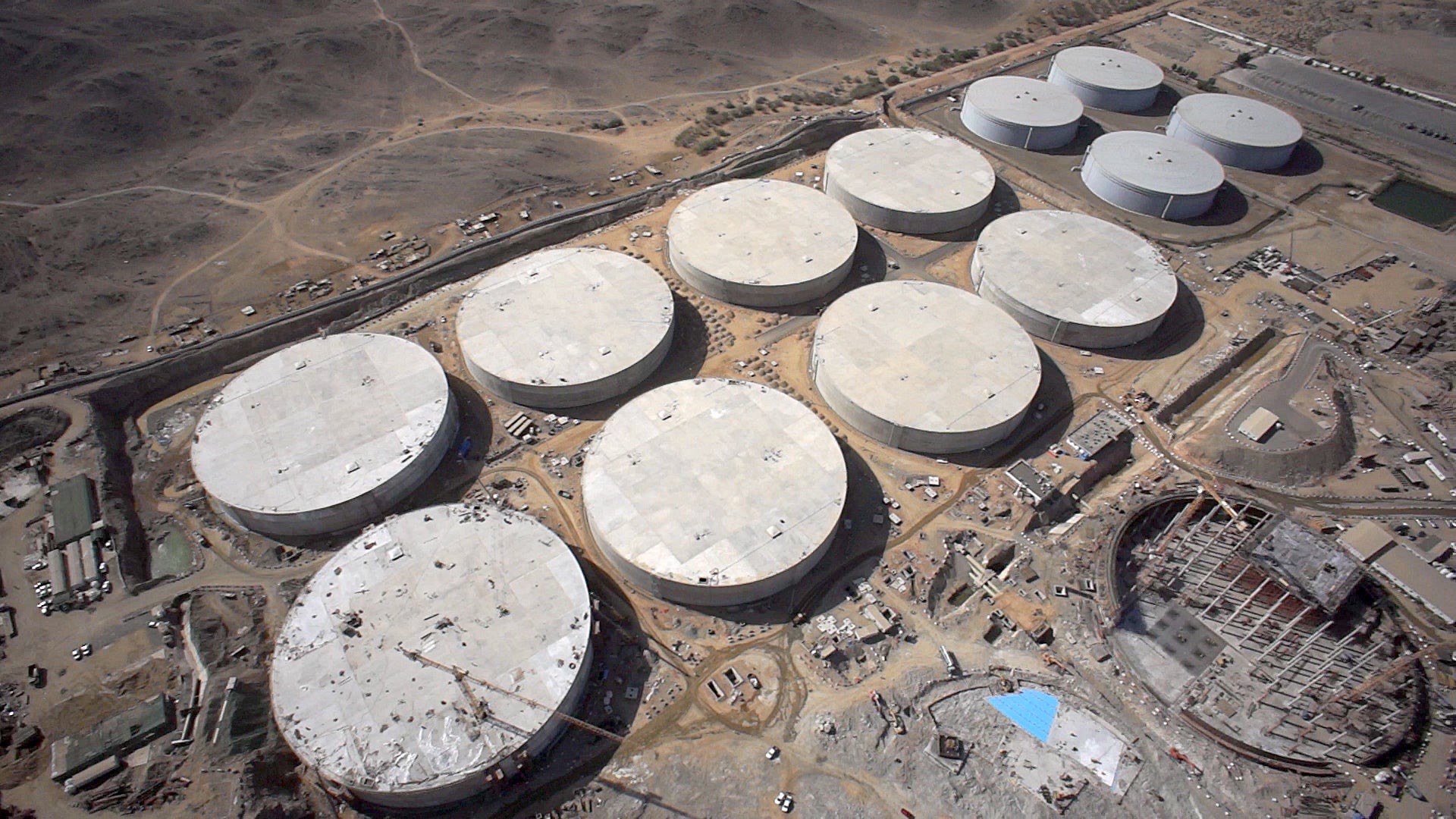

4. Operational storage tanks - distributed along the route every 100-150 km. Equalise flow between source supply and downstream demand; buffer 12-24 hours of throughput.
5. Strategic storage - multi-million-m³ concrete reservoirs at the destination cities, providing 2-7 days of strategic security against source-side disruption.
6. Bi-directional flow capability - newer Saudi IWTPs (Jubail-Buraydah, Riyadh-Qassim) include reverse-pumping capability between source and destination. This lets water flow from Eastern Province to Central Province during a Red Sea desal outage, or vice versa. Adds complexity but creates a single integrated water grid.
7. SCADA control - central control room monitors pressure, flow, tank levels, pump status, leak detection (acoustic sensors + pressure-transient analysis). Predictive control balances supply and demand at minimum pumping energy.

Pipeline & pumping technology

Insight charts

Saudi SWPC IWTP programme. Tariff (LWTC) in USD/m³ transmitted vs pipeline length, sponsor participation, country mix, technology and RFP-to-COD duration. Dataset is small (3 awarded projects) so distributions are sparse.

Saudi SWPC IWTP programme. Tariff (LWTC) in USD/m³ transmitted across pipeline length.

Dataset: 3 GCC IWTP (Water Transmission) procurements.

What is District Cooling?

District Cooling (DC) is a central air-conditioning service: instead of each building having its own rooftop chillers, a single central plant chills water to ~5 °C and sends it through insulated underground pipes to dozens (or hundreds) of customer buildings. At each building, a small heat exchanger (an Energy Transfer Station or ETS) uses the cold incoming water to cool the building's internal HVAC loop. Warmer water (~13 °C) returns to the central plant for re-cooling.

The point is efficiency at scale: large centrifugal chillers with magnetic-bearing oil-free compressors achieve ~0.55 kW/RT (Refrigeration Ton) energy intensity, vs ~1.2 kW/RT for a typical building rooftop unit - roughly half the power for the same cooling. Plus, central plants free up rooftop space, reduce peak grid demand (the GCC's biggest electricity stress is summer afternoon AC load), and let you add thermal energy storage to shift cooling production to overnight off-peak power hours.

How a DC plant fits the city cooling system

Power and water in at the left, chilled water out across the city on the right. The schematic shows the four stations.

How a DC plant works

Six stages of the chilled-water cycle. Click any step to read what happens there.

Click any step in the flow above

A modern DC plant is a single thermodynamic loop wrapped around a city: refrigerant cycles inside the chillers; chilled water cycles between plant and tenants; cooling water cycles through the towers; and a TES tank decouples production from demand.

Cooling-island technologies

Technology	What it is	How often it is used

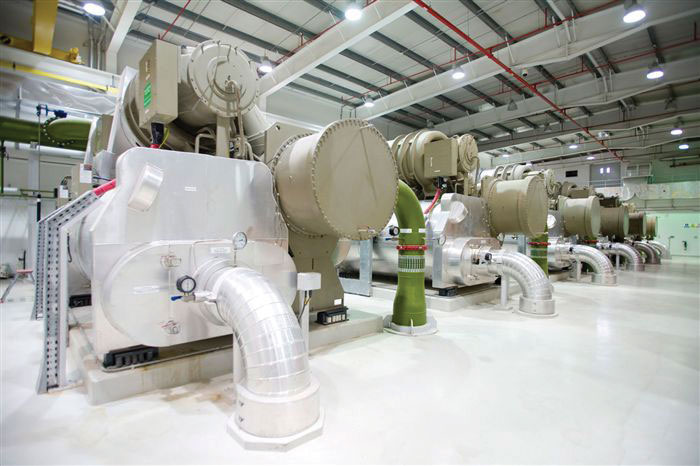

Centralised electric chillers Carrier 19XR · Trane CenTraVac · York YK · Daikin McQuay WMC	Water-cooled centrifugal chillers 4,000-6,000 RT per unit, oil-free magnetic-bearing compressors, refrigerant R-134a or HFO-1233zd. The base case for every modern GCC DC concession - Diriyah, KSP, NEOM Line, Saadiyat, Al Mouj, Deira Waterfront.	Most used
Centralised + TES Stratified chilled-water tanks	Bolt-on stratified chilled-water tank (5,000-50,000 m³) sized for 4-10 hours of discharge. Lets the plant overproduce overnight at cheap power and shave the afternoon peak. Standard on Saudi PIF giga-projects (Diriyah, KSP, NEOM) and Tabreed sites in UAE.	Often used
Sea-water condensing Once-through condenser cooling	For coastal plants - draws sea water, runs it through the condenser tubes, returns it warmer. Avoids the makeup-water draw of evaporative cooling towers, but corrosion control and intake siting are demanding. Used at Palm Jebel Ali, Deira Waterfront and several Tabreed coastal plants.	Often used
Multi-plant network Interconnected sub-plants on shared distribution	Several sub-plants tied into one shared distribution backbone, dispatched centrally. Lowers single-point-failure risk and lets capacity grow in phases. Standard for very large concessions - NEOM The Line (multiple plants along the corridor), KSP phasing, PAL acquisition portfolio.	Sometimes used
Absorption chillers Lithium-bromide / heat-driven	Use waste heat (from CCGT plant or solar thermal) instead of electricity to drive the refrigeration cycle. COP ~0.7-1.2 vs ~6 for electric. Niche - economic only when waste heat is free and abundant. Considered on some IWPP-adjacent cogeneration sites but rarely deployed at scale in standalone DC.	Rarely used
Compression chillers (small) Screw / scroll < 2,000 RT	Smaller positive-displacement chillers, used as topping or back-up units on smaller community-scale plants (~5,000-25,000 RT). Higher specific power than centrifugal but cheaper capex.	Rarely used

Real-world plants

A representative slice of the GCC concession map - PIF giga-project plants in Saudi, Tabreed and EMPOWER's UAE network, and Najdi-themed Diriyah.

Insight charts

Tariffs in District Cooling concessions are almost universally confidential, so chart 1 will be empty until tariff data is added. The capex-per-RT chart shows scale economics where disclosed; the four supporting charts track sponsor participation, country share, technology mix and concession term.

GCC district cooling concessions. Capacity in Refrigeration Tons (RT); tariffs in USD/RT-month (typically confidential).

Dataset: 10 GCC District Cooling procurements.

What is Social Infrastructure?

Social infrastructure is the bucket of long-life public assets that serve citizens directly - schools, hospitals, airports, government buildings, sports + leisure facilities, student housing - financed and operated under a public-private partnership rather than built and run by the state alone. Unlike an ISTP or an IWPP where the procurer is buying a measurable utility output (m³ of treated water, MW of capacity), social infra deals are typically structured around availability: the SPV builds and maintains the facility; the ministry pays a periodic availability charge as long as the asset is open and KPI-compliant; clinical, teaching or operational service usually stays in the public sector.

Typical asset types

Six asset classes sit under social infrastructure across the GCC. Each carries a slightly different demand-risk and revenue profile. Saudi Arabia's NCP-led programme is the largest and fastest-growing of the regional pipelines; the UAE and Kuwait (KAPP) are building structured tracks behind it.

How a Social Infrastructure PPP is structured

The diagram below maps the standard contractual structure. The procuring authority signs the project agreement and pays the availability charge; the SPV holds the concession, owns the asset and maintains it; sponsors put in equity, lenders put in project debt; EPC builds, FM runs the facility for 25-30 years.

Contract grammar borrows from IWPP / ISTP - 25-30 yr BOOT / BTO / DBFM concession, SPV holds the asset, sponsor consortium with EPC + FM, project debt with sovereign-linked off-take. Payment = availability charge minus deductions for unavailability or KPI failure.

How does a Social Infrastructure PPP get built?

From cabinet approval to asset handback, in seven steps. Click any step to expand. The process below mirrors what NCP, KAPP and ADQ use in practice.

Click any step in the flow above

Each step opens a short description here. The same seven-step backbone runs in every social PPP - what changes between deals is whether the contract model is DBFM, BOOT or BOT, and how much demand risk sits with the SPV.

What contract models are used?

Social PPP uses a small family of contract structures. The choice depends on whether the procurer wants the SPV to own the asset for the concession term (BOOT), only build-transfer-operate (BTO), or simply design-build-finance-and-maintain without owning anything (DBFM).

Contract model	What it is	How often it is used
DBFM Design - Build - Finance - Maintain	The SPV designs, builds, finances and maintains the asset for the concession term. The procurer keeps title to the land and the asset; clinical, teaching or operational service is delivered by the public sector. Payment is a pure availability charge - no demand risk on the SPV. The default model for KSA schools and hospitals.	Most used
BOOT Build - Own - Operate - Transfer	The SPV builds the asset, owns it for the concession term, operates it and transfers it back at end of term. Common where the asset has revenue streams (terminal fees, parking, retail concessions) the SPV can monetise alongside the availability charge.	Often used
BTO Build - Transfer - Operate	Title transfers to the procurer at PCOD, but the SPV keeps the right to operate the asset and collect availability + usage fees for the rest of the concession. Used where the procurer needs to own the asset on its balance sheet from day-one for political or accounting reasons.	Sometimes used
Operating concession Brownfield operations contract	The asset already exists. The SPV takes it over, refurbishes it, operates it and collects revenue (e.g. terminal concession fees) for a fixed term. The 2024 KAIA / RUH airport concessions are the canonical GCC examples.	Often used (transport)
Clinical-operator partnership Hospital management contract	A hybrid: the procurer (or its development arm) keeps build + finance, but contracts in a global clinical operator (Cleveland Clinic, Mayo, KHRH) to run the asset under a long-term management agreement. The "SPV" is really an operating JV, not a PPP SPV.	Sometimes used (healthcare)
Pure BOT Build - Operate - Transfer	The SPV builds + operates + transfers but takes some demand risk (e.g. minimum-revenue-guarantee shortfall). Rarely used in GCC social - sovereign-linked off-take is the default.	Rarely used

Real-world examples

Operational and under-construction social-infrastructure PPPs from the research dataset. Photos are placeholders until we have rights-cleared images on file - the card facts and source dates are accurate today.

Insight charts

Six views over the disclosed GCC social-infrastructure PPP deals - capacity (varies by sub-sector), USD deal value, per-unit build cost, lead sponsors, country mix, sub-sector mix and concession length.

Disclosed GCC social-infrastructure PPP deals. Bubble chart at the top, structured database below - mirrors the ISTP layout. (est.) means deal value is a reputable-source estimate; everything else is officially disclosed.

Empty cells are "not yet publicly disclosed". (est.) values use reputable-source estimates. Email info@vars.live if you have a public source we should ingest.
